Apple's 20-Stop Image Sensor Patent: Could It Redefine Mobile Photography?

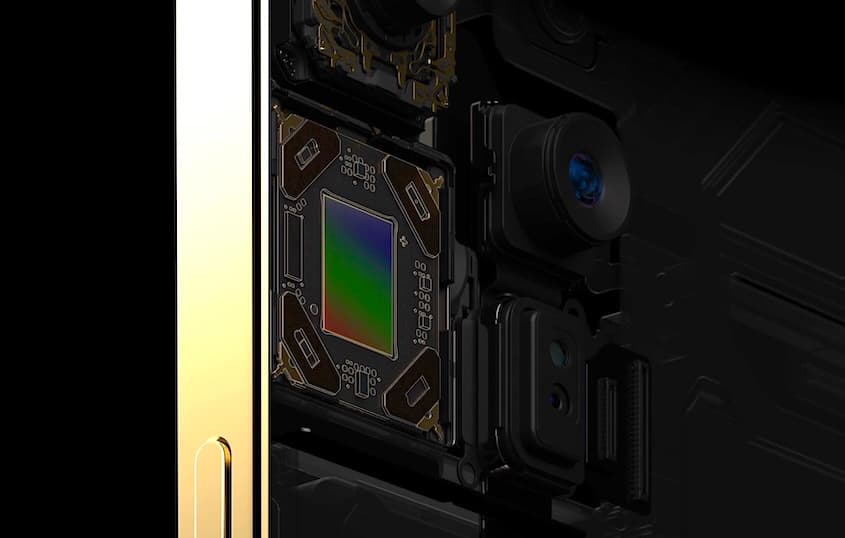

This technological leap comes through a novel stacked sensor design comprising two key layers:

• A sensor die containing photodiodes and analog circuitry to capture light
• A logic die handling processing, noise reduction, and exposure control

What is dynamic range, and why do 20 stops matter?

Dynamic range in photography refers to the ratio between the brightest and darkest tones a camera can capture in a single exposure, measured in "stops" where each stop represents a doubling or halving of light. The human eye has an instantaneous dynamic range of about 10-14 stops, expanding to 20-30 stops after pupil adjustment and retinal processing.

Most smartphone cameras today capture between 10 and 13 stops of dynamic range. Professional cinema cameras like the ARRI ALEXA 35 offer about 17 stops. Apple's proposed 20-stop sensor would, therefore, represent a massive leap, enabling mobile devices to capture scenes with extreme contrast (like a person standing in front of a bright window) without losing detail in shadows or highlights.

This advancement is particularly significant because dynamic range has been one of the most stubborn limitations of smartphone cameras. While computational photography has helped bridge the gap, true high-dynamic-range capture in a single exposure could enable new levels of image quality for both photos and video.

The smartphone sensor paradox: Small size, big performance

Traditionally, there's been an inverse relationship between sensor size and dynamic range - larger sensors in dedicated cameras typically perform better. This makes Apple's claims particularly remarkable because smartphone sensors are physically tiny compared to those in professional cameras.

Smartphones have historically compensated for small sensor size through computational photography - taking multiple shots at different exposures and combining them to create a single image with expanded dynamic range. While effective, this approach has limitations:

• It requires the scene to remain static
• It can introduce artifacts from moving subjects
• It's less effective for video
• It often produces "processed" looking images due to heavy noise reduction

How Apple overcomes small sensor constraints

Apple's patent suggests moving much of this processing directly onto the sensor itself through its stacked design and on-chip noise cancellation. This could enable single-shot HDR capture with professional-grade dynamic range - a game-changer for mobile photography and videography.

What makes Apple's approach particularly innovative are three key technological advancements:

• LOFIC (Lateral Overflow Integration Capacitor): This mechanism allows each pixel to store light across three distinct charge levels depending on scene brightness, enabling the sensor to handle extreme lighting differences without losing detail
• Built-in noise suppression: Each pixel includes its own current memory circuit that measures and cancels out thermal noise in real time, before the image even leaves the sensor die
• 3T pixel design: Contrary to industry trends favoring 4-transistor (4T) designs for lower noise, Apple achieves superior performance with a simpler 3-transistor (3T) structure through its innovative noise cancellation approach

Financial implications and market disruption

From a business perspective, this patent signals Apple's ambition to reduce reliance on Sony, its current sensor supplier, and bring more camera technology in-house. Developing its own sensors would give Apple greater control over the imaging pipeline and potentially create new competitive advantages.

The financial stakes are high. Apple's camera capabilities are a major selling point for iPhones, and significant imaging improvements could drive upgrade cycles. Moreover, sensors with this level of performance could open new markets for Apple in professional content creation and AR/VR applications.

However, it's worth noting that Apple recently settled a $490 million lawsuit related to iPhone sales disclosures in China, demonstrating that even as the company pushes technological boundaries, it faces ongoing challenges in maintaining investor confidence across all aspects of its business.

Is this technology ready for prime time?

While the patent is exciting, several factors suggest cautious optimism:

• Patent vs. product: Apple files many patents that never become products. The company has made no official announcement about bringing this sensor to market
• Manufacturing challenges: Producing such advanced sensors at scale would be extremely difficult. The patent doesn't address potential yield issues or costs
• Real-world performance: Laboratory specs don't always translate to real-world image quality. The sensor would need to prove itself in actual devices

That said, the level of detail in the patent suggests this is more than just theoretical. Industry observers speculate we might see this technology in future iPhones (possibly iPhone 17 Pro) or Apple Vision Pro iterations.

Why this matters to everyday users

For non-technical consumers, this advancement means:

• Better photos in challenging light: Capture detail in both shadows and highlights without washed-out skies or blackened faces
• More natural-looking images: Reduced need for heavy computational processing means more authentic results
• Professional-quality video: Potential for cinematic HDR video from a smartphone
• New creative possibilities: Greater flexibility in post-processing and more room for artistic expression

As Apple continues to push the boundaries of what's possible with mobile imaging, this patent represents one of the most ambitious attempts yet to bridge the gap between smartphone convenience and professional-quality results. While its commercial viability remains unproven, the potential impact on photography and videography could be profound if even a fraction of these claims become reality.
